Bourns MF-USHT Multifuse® PTC Resettable Fuses

Bourns MF-USHT Multifuse^® Positive Temperature Coefficient (PTC) Resettable Fuses are primarily designed for automotive applications, including engine control modules. These fuses feature a small footprint (1210) with higher hold currents of up to 2A at elevated temperatures. The MF-USHT series fuses incorporate a low thermal derating factor and can operate within the temperature range of up to 125°C. These AEC-Q200 Rev-D compliant fuses are stress test qualified for passive components in automotive applications. Bourns MF-USHT fuses are ideal for high-density boards used in automotive circuitry, industrial, telecommunications, and consumer electronics.

Features

Compliant with AEC-Q200 Rev-D
- Stress Test Qualification for passive components in automotive applications

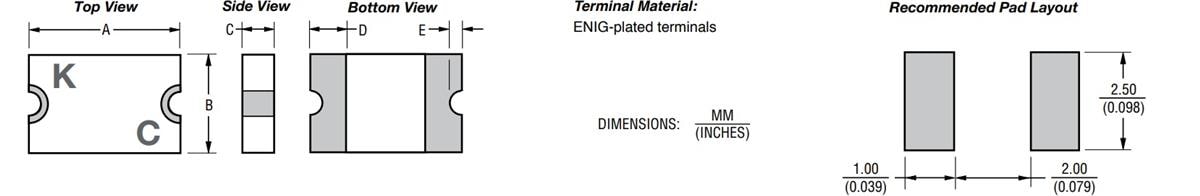

Small footprint size (1210)
Up to +125°C operating temperature

Low thermal derating factor
Higher hold currents at elevated temperatures
RoHS compliant

Applications

Automotive circuitry, including engine control modules
Electronic equipment
Protection of automotive circuitry including engine control modules

Overcurrent surge protection of electronic equipment required to operate at high operating temperature ranges
Resettable fault protection for general electronic equipment
