Ledil ADELIA-110 LED Lighting Reflectors
LEDiL ADELIA-110 LED Lighting Reflectors are premium aluminum reflectors that combine stunning high-quality aesthetics with premium light quality. These reflectors include multiple sizes and from spot to extra wide beam angles. The ADELIA-110 LED lighting reflectors can take any track or downlight luminaires with a wide range of compatible connectors and LEDiL original accessories. Ideally, these lighting reflectors are used in retail and indoor architectural applications.
Features
- ∅110mm variant optimized for Chip On Board (COB)
- 22mm Light Emitting Surface (LES) size
- 109.8mm dimensions
- 57.90mm height
- RoHS compliant
Applications
- Retail
- Indoor architectural

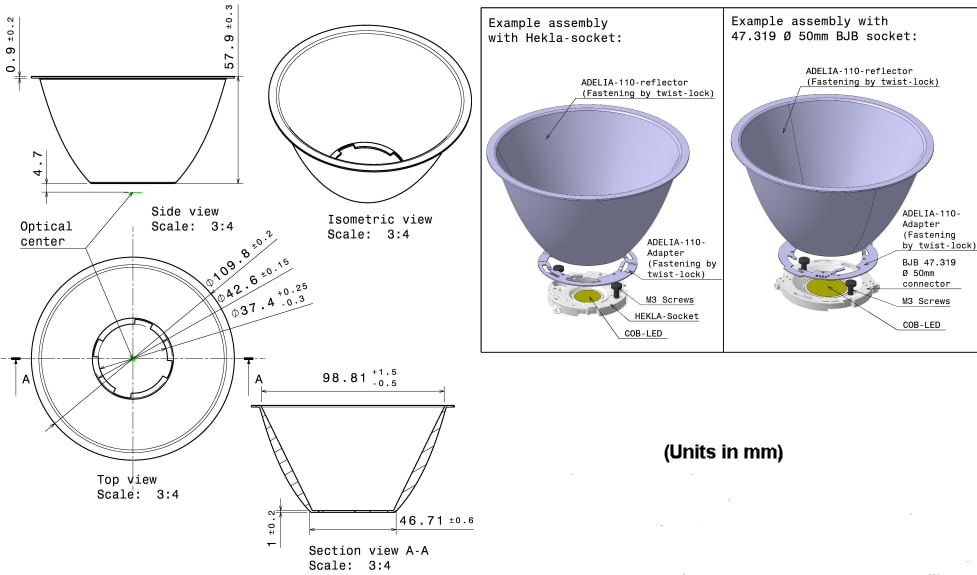

Mechanical Drawing
Dimensions Diagram
