Vishay WKP AC Line Rated Ceramic Disc Capacitors

Vishay WKP AC Line Rated Ceramic Disc Capacitors comply with IEC 60384-14 4th edition. The high reliability, single-layer AC disc safety capacitors, Class X1 (760VAC) and Class Y1 (500VAC) are available in a wide range of lead styles. Vishay WKP series is ideal for X1, Y1 according to IEC 60384-14.4, and is ideal for use in across-the-line, line-by-pass, and antenna coupling applications.

Features

  • Complying with IEC 60384-14 4th edition
  • High reliability
  • Wide range of lead styles
  • Single-layer AC disc safety capacitors

Applications

  • X1, Y1 according to IEC 60384-14.4
  • Across-the-line
  • Line-by-pass
  • Antenna coupling

Specifications

  • 33pF to 4.7nF capacitance range
  • Rated voltage
    • X1: 760VAC, 50Hz (IEC 60384-14.4); 760VAC, 50Hz / 60Hz (US/UL/CSA 60384-14)
    • Y1: 500VAC, 50Hz (IEC 60384-14.4); 500VAC, 50Hz / 60Hz (US/UL/CSA 60384-14)
  • ±10%, ±20% tolerance
  • ≥10,000MΩ insulation resistance at 500VDC
  • -40°C to +125°C temperature range

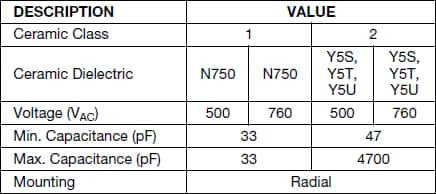

Quick Reference Data

Chart - Vishay WKP AC Line Rated Ceramic Disc Capacitors

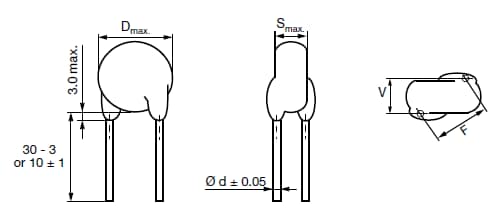

Dimensions

Chart - Vishay WKP AC Line Rated Ceramic Disc Capacitors
Publicado: 2019-02-19 | Actualizado: 2024-01-04
